| Type-052D DDG 1 |
 |
| Type-052D DDG 2 |
.jpg) |
| Type-052D DDG 3 |
.jpg) |

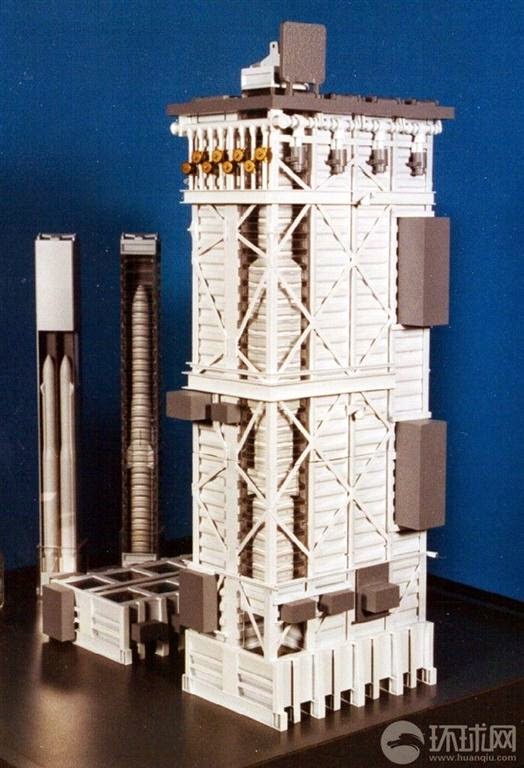

| Type-052D DDG vertical launch system (VLS) model |
Type-052D is equipped with China's first universal VLS capable of launching HHQ-9 series of long range SAM, quad packed medium SAM, YJ-18 anti-ship missiles, LACM and Yu-8 (or similar ASROC). It is also carrying PJ-38 130 mm main gun, 24-cell version of HQ-10 CIWS and PJ-12 7-barreled 30 mm CIWS. A lot of the radar, ESM suite, communication antenna and other electronic installations look like the ones we have seen on 052C, but it is carrying a flat second generation multifunctional radar given the designation Type 346A and a new type of variable depth sonar at back.
Where as Type 052C placed heavy emphasis on AAW as China's first area air defense ship, Type 052D not only improves in that area, but should also become capable in ASW (with the long range anti submarine missile + improved sonar), ASuW, long range missile strikes and amphibious landing support. As the hull of 052D has already been "maxed" out, the next generation of Chinese destroyer would be larger and equipped with more advanced propulsion unit.
Type 052D’s is clearly designed to provide area air defense. It is the first modern Chinese AAW ship that has advanced multi-functional radar system with Active guided long range SAM along with relative modern combat system.
It is also expected by many to have an advanced AEGIS like combat system allowing engagements using inputs from sensors on different ships and aircraft. While it is also equipped with the advanced YJ-62 (also replaceable with LACM) and advanced sonar system (looks to be same Towed Array Sonar as on Type 054A), there is no question that the emphasis of the ship is for area air defense. Type 052C’s ancestor Type 052B can be looked at as a stepping stone from Type 052 to 052C. Its production stopped at 2, because Type 054A is cheaper and provides almost all of the capabilities of 052B (including much stronger ASW). A large PLAN flotilla prior to 052D would surely need both Type 052C and 054A to provide required air defense and anti-submarine defense.
Type 052D provides PLAN with a lot more flexibility. That’s why more Type 052D is expected to be produced than Type 052C. It is equipped with a newer generation of multi-functional radar, new variable depth sonar along with other new sensors.
More importantly, it’s the first surface combatant with the universal VLS.
Type 052D could also maintain a more balanced profile with 32 cells for long range SAM, 8 cells for quad-packed medium range SAM, 8 cells for anti-ship missiles, 8 cells for LACMs and 8 cells for ASROC like missile. That would provide comparable air defense to 052C while having increased firepower in ASuW and ASW.
If 052D is given the task of area air defense, it can utilize all of its VLS for the purpose of air defense. They can use 48 cells for long range SAM and remaining 16 cells for quad-packed medium range SAM or even 56 cells for long range SAM and remaining 8 cells for quad-packed medium range SAM. Both of which would provide solid protection for the ship itself and surrounding fleet once we factor in the 24-cell HQ-10 SAM and 7-barrelled PJ-12 CIWS for point defense. Another possible usage is in BMD, although I'm not sure if the technical characteristics of 052D's radar allows it to do tracking and target discrimination of ballistic missile threats. This role might be left for Type 055 cruisers. In theory, you could put the reported HQ-26 missile (or some other SM-3 like missile) on 052D along with other air defense missiles in the BMD role.
Vertical Launching System
The Type 052D has a brand new vertical launching system (VLS) for surface to air missiles, cruise missiles, anti submarine missiles, and anti ship missiles, and is capable of quad packing missiles and cold launch; it is the 3rd type of Chinese VLS system identified, after the circular version of VLS on Type 052C destroyer and the rectangular version on Type 054A frigate.
The VLS system on Type 052D differs from that on Type 052C.
The circular-shaped VLS system on Type 052C is replaced by the VLS with rectangular cells on Type 052D. Moreover, this western-like VLS looks different to the VLS system of Type 054A. Photo shows that Type 052D's VLS system dose not contain the shared exhaust vents between the rows of lunching tubes, which is the common feature of Type 054A's VLS system. Instead, the VLS on Type 052D looks more similar to US Mk 41 VLS, but without obvious indication of exhausts. The lack of exhaust vents in the leak photos leads to some Chinese internet forums postulating the cold launch method is adopted on Type 052D, but such claims cannot be confirmed by independent or official sources.
There are many other Chinese internet forums claiming that the difference between the VLS on Type 052D and VLS on Type 054A is simply a rearrangement of exhaust to a different location and Type 052D is still utilizing the hot launch method like Type 054A, but used a more advanced method of concentric canister launch (CCL) VLS (同心筒式垂直发射系统), first pioneered by USA in the mid-1990 for Mk 41 VLS upgrade.
This second claim appears more probable than the cold launch claims, because official Chinese sources have confirmed the existence of CCL VLS developmental program headed by the School of Mechatronics Engineering of Beijing Institute of Technology, and various research papers have been publicized, such as the effect of the flow mechanism and annular size of CCL and others. It's reported that chief designers of Chinese CCL VLS included Professor Yuan Zenfeng (袁曾凤), Professor Miao Peiyun (苗佩云) and professor Liang Shijie (梁世杰). When using CCL method, the flame produced in hot launch is diverted through the space between the inner and outer canisters within each individual VLS cell, so no specially dedicated exhaust shared by several cells are needed, thus similar to how British vertical launched (VL) Sea Wolf missile operates, and this is why CCL VLS can be mistaken for cold launch due to the lack of dedicated exhaust sandwiched between two rolls of cells in traditional VLS, while in reality, the exhaust of CCL VLS is within each individual cell.
What is also confirmed by semi-official sources in China is that the VLS on Type 052D is built to GJB 5860-2006 standard (GJB = Guo-jia Jun-yong Biao-zhun, 国家军用标准 meaning National Military Standard), so that different types of missiles can be launched by a single launching system. According to some of the publicized examples of GJB 5860-2006 requirement, there are 3 types of VLS that differs in length: 9 meter, 7 meter and 3.3 meter respectively (section 5.1.3), but the diameter is same for all, 850 mm maximum (section 6.1.2), with each launching tube filled with either dry air or nitrogen inside (section 6.1.4), and with higher internal pressure. (section 6.1.4). Similar to U.S. Navy's MK 41, a launching module includes 8 launching tubes (section 5.2.4), and each tube can house 1 - 4 missiles (section 5.2.4). Each launching model has a launching control unit (section 5.3.7), which can simultaneously launch up to 4 missiles of different kind (section 5.3.6). The launching control unit must have build-in test/diagnostic function (section 5.3.8). These publicized portions of GJV 5860-2006 are surprisingly similar to that of Mk 41 VLS, which prompt some Chinese internet sources to claim that there are potential future export of such system so that it has to comply to Mk 41 VLS, the most widely used VLS in the world. (Wikipedia)
With the addition of PJ-38 artillery gun and VLS launched LACMs, 052D could be PLAN's first ship to have major land attack capabilities. PJ-38 would provide 052D with the ability to support amphibious landings like Sov destroyers.
Long range LACMs would finally give PLAN the ability to attack land target from far away. This is a capability that PLAN really never needed when they were a brown or green water navy.
Even though YJ-62 launchers were removed, 052D could also be fitted with 16+ anti-ship missiles in an ASuW profile. All of the SAMs should also have secondary anti-ship mode. If they develop PJ-38 into being able to launch over the horizon anti-ship projectiles, 052D could be quite powerful in ASuW missions.
PJ-38, the 130mm turret weighs at least 50 tons and the gun has a range of 29.5 kilometers and a max rate of fire of 40 rounds a minute. Laser guided rounds can be fired but mostly the weapon fires the usual unguided shells.
Finally, Type 052D can also be PLAN's most effective surface ship in ASW missions. Its universal VLS can hold longer ranged ASROC missiles than Type 054A's VLS. Type 054A is almost limited to the short legged Z-9C helicopter while 052D could also use Ka-28 helicopters (and Z-15/20 in the future). With a more powerful sonar suite than Type 054A, it would be better suited for ASW missions in blue waters.
At the moment, 052D is China's primary surface combatant and expected to provide the most important roles in escorting a fleet. It is likely to be useful in China's navy for a long time because it is using China's first universal VLS and an artillery gun that can launch different type of projectiles. Its close in defense systems could easily be upgraded. New missiles and projectiles could probably be supported on 052D in the future with software updates or relatively small hardware upgrades. PLAN currently has the problem where it often does not replace outdated weapon system because of cost and supply concerns. That's why the recent Type 052 upgrades only changed the CIWS. Type 052D is first ship in PLAN to really benefit from a more plug and play approach that USN has enjoyed for years. Even when Type 055 joins service, Type 052D could still be very useful in land attack or ASuW or ASW roles.
